Features:
PC based device
Best Practice & Medical Director compatible
Narrative interpretation
Easy & customisable reports
Lightweight
Compact & transportable
Compatible with the powerful Vectraplex ECG software (purchased separately) providing Cardiac Electrical Biomarker CEB® and a derived 12-15 lead ECG with just 5 electrodes
Specification:
Safety Standards: AAMI, EC53, IEC/EN60601-1, IEC/EN60601-1-2, IEC/EN 60601-2-25
Patient Leads Length: Limb – 1M, Chest 0.6M
Gain Sensitivity: 5, 10, 20mm/mV
Input Range: +-6mV
Defibrillator Protection: Patient leads isolated from system & operator with 4kV protection
Frequency Response: 0.05 to 175Hz +-3dB
Electrode Connections: 4mm banana plug with tab or snap connectors
Dimensions: 85x91x20mm
Weight: 250-335 gm depending on cables
Operating Conditions: 10-35 degrees celsius, <85% humidity (non condensing)

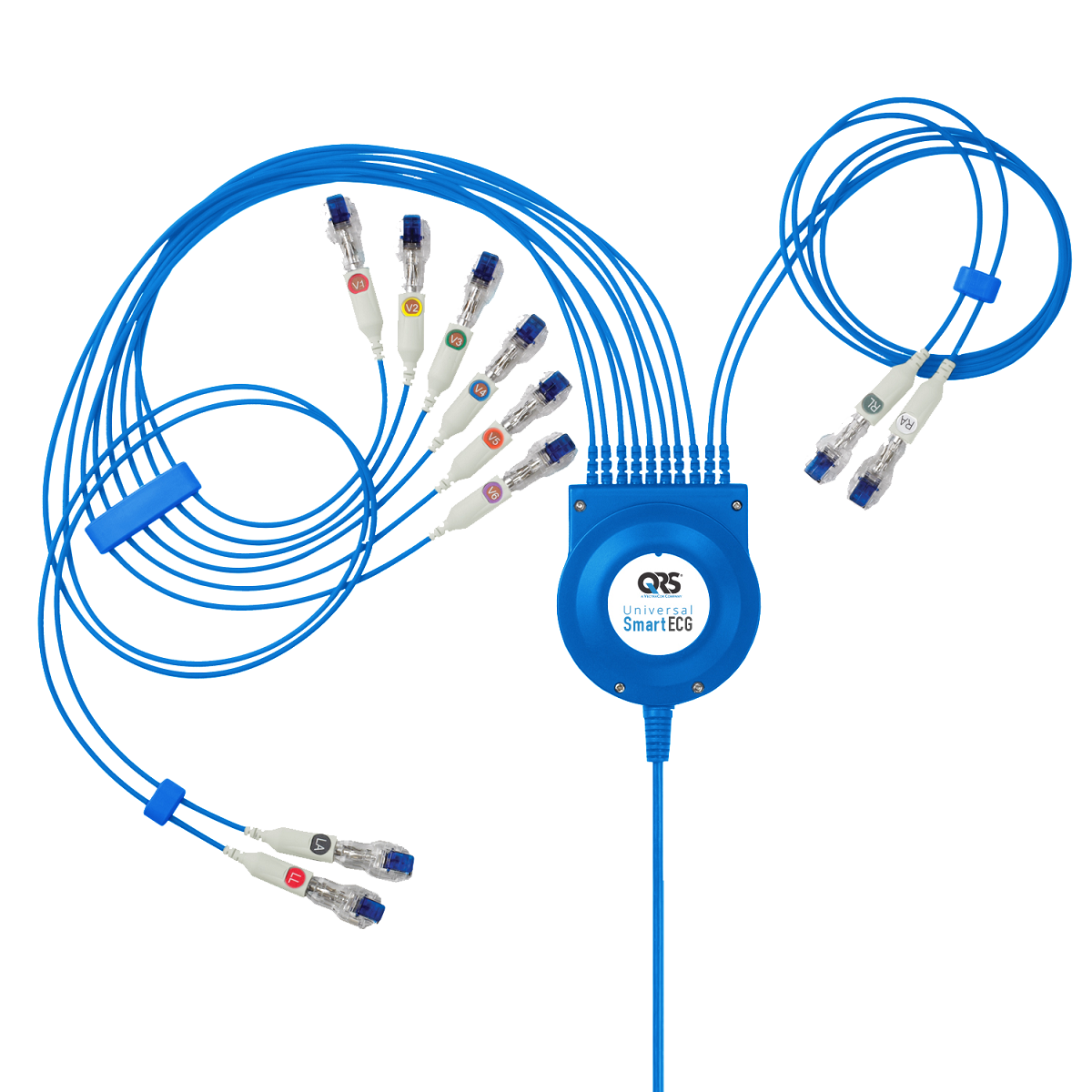

Kit Inclusions: Universal Smart ECG, QRS Resting ECG Tab Electrodes PK100, Sure-Lock snap & tab electrode adaptors PK10, Lead Placement Guide, Office Medic Software
Warranty: 3 Years
Included Software Updates & Support: 3 Years
ORDER CODES:
VECZ70000500
MAINTENANCE: Please make sure your ECG is serviced & calibration check is completed yearly to ensure it functions to its optimum.
