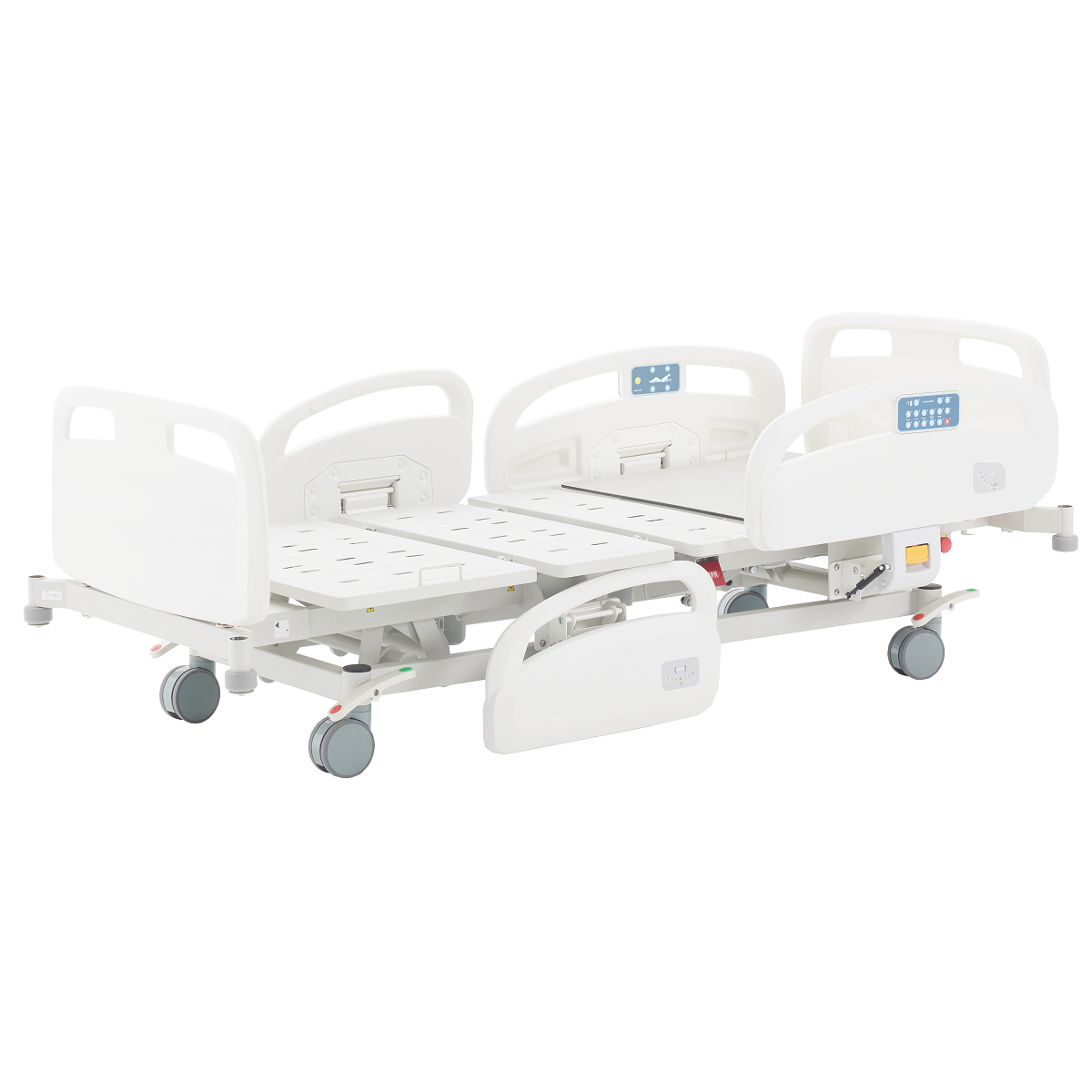

ES Series Hospital Bed Features:
Five function electric operation of backrest, knee break, height and trendelenburg
Integrated side rail controls for patient & caregiver
Integral function lockout
X-Ray translucent backrest
Electric & manual CPR release on both sides
Removeable head & foot board
Integrated mattress platform extension
Undercarriage light
Supports fowlers chair position

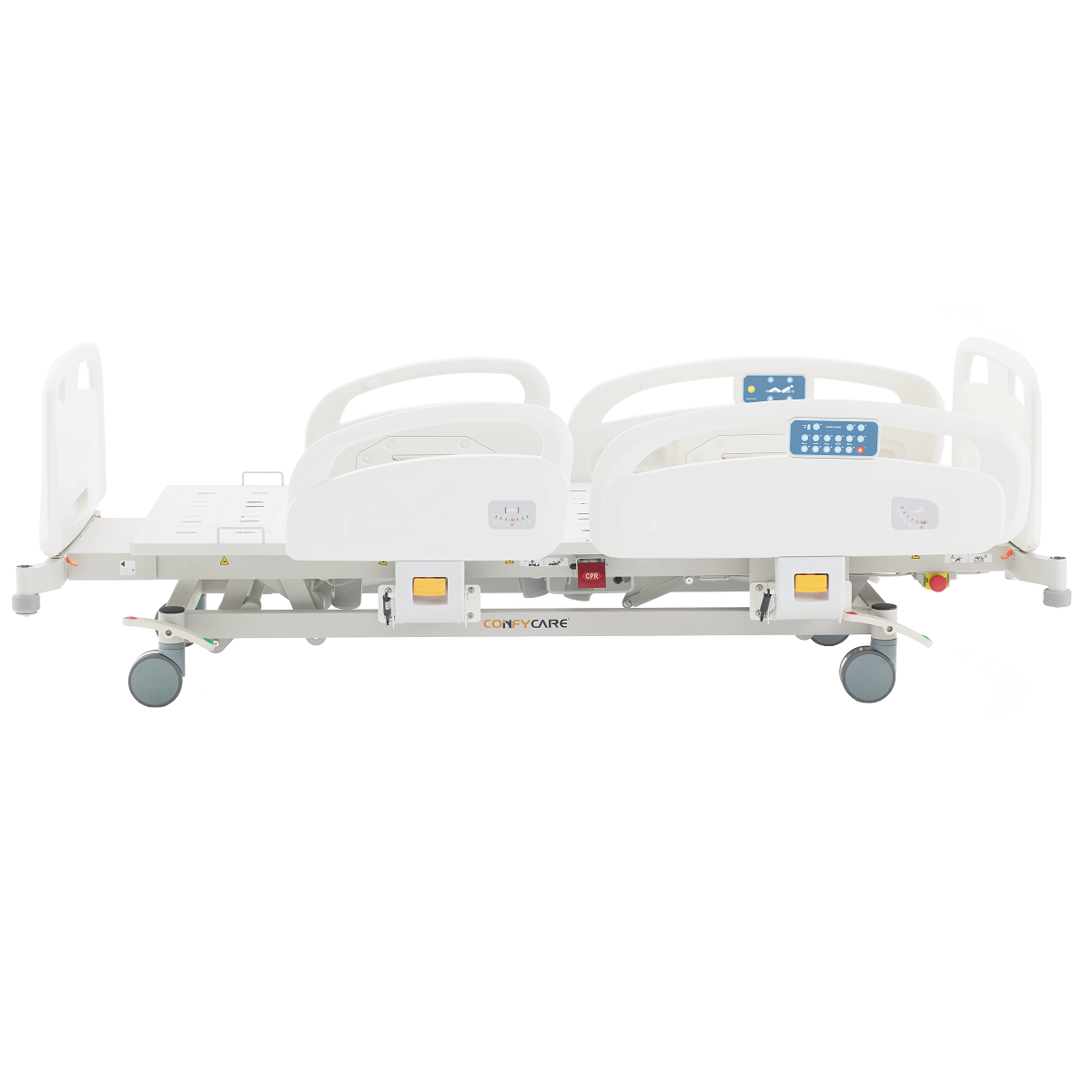

Visual indicator for minimum height position
Battery backup
Emergency stop button
Corner bumpers with self help & iv pole locking mechanism
Four ABS safety side rails
Four drainage bag holders on both sides
Heavy duty IV pole
Auto contour simultaneous adjustment of backrest & knee break
125mm central castors with directional lock
Foam mattress
ES Series Hospital Bed Specification:
Overall length: 228cm
Overall width: 105cm

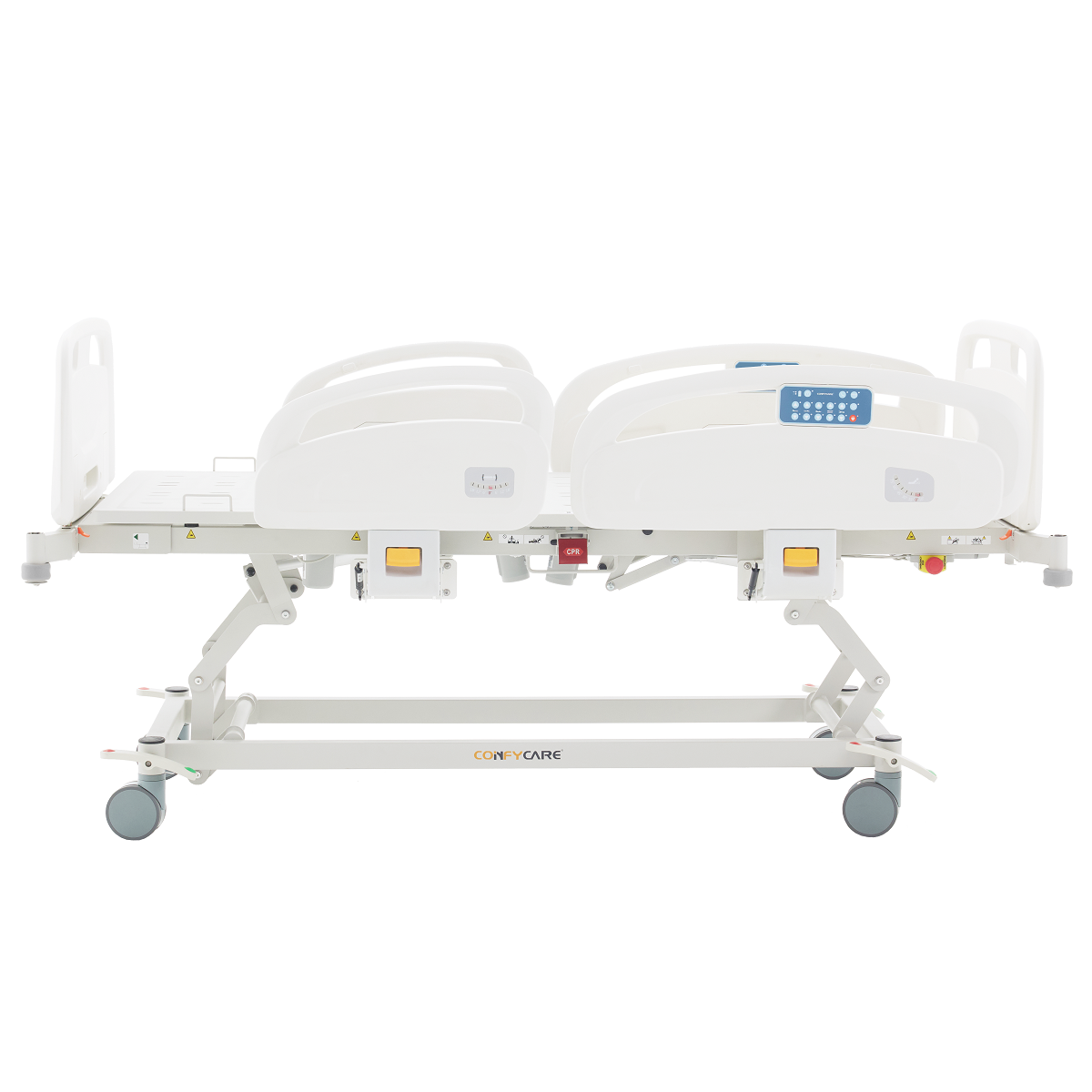

Height range: 40.5-75cm
Hoist clearance: 15cm
Mattress platform length: 200cm
Mattress platform width: 90cm
Mattress platform extension: 10cm
Mattress size: 200x90x10cm

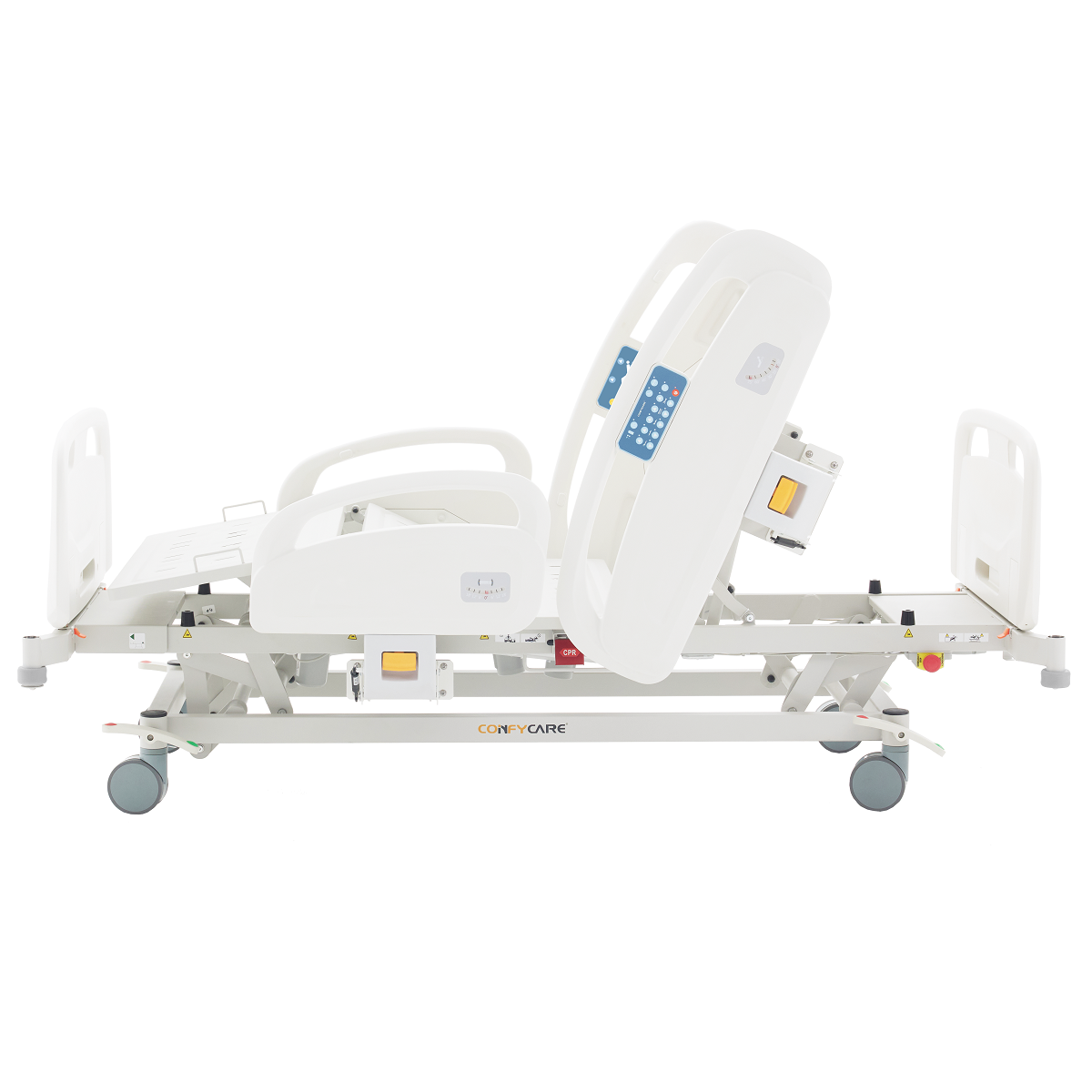

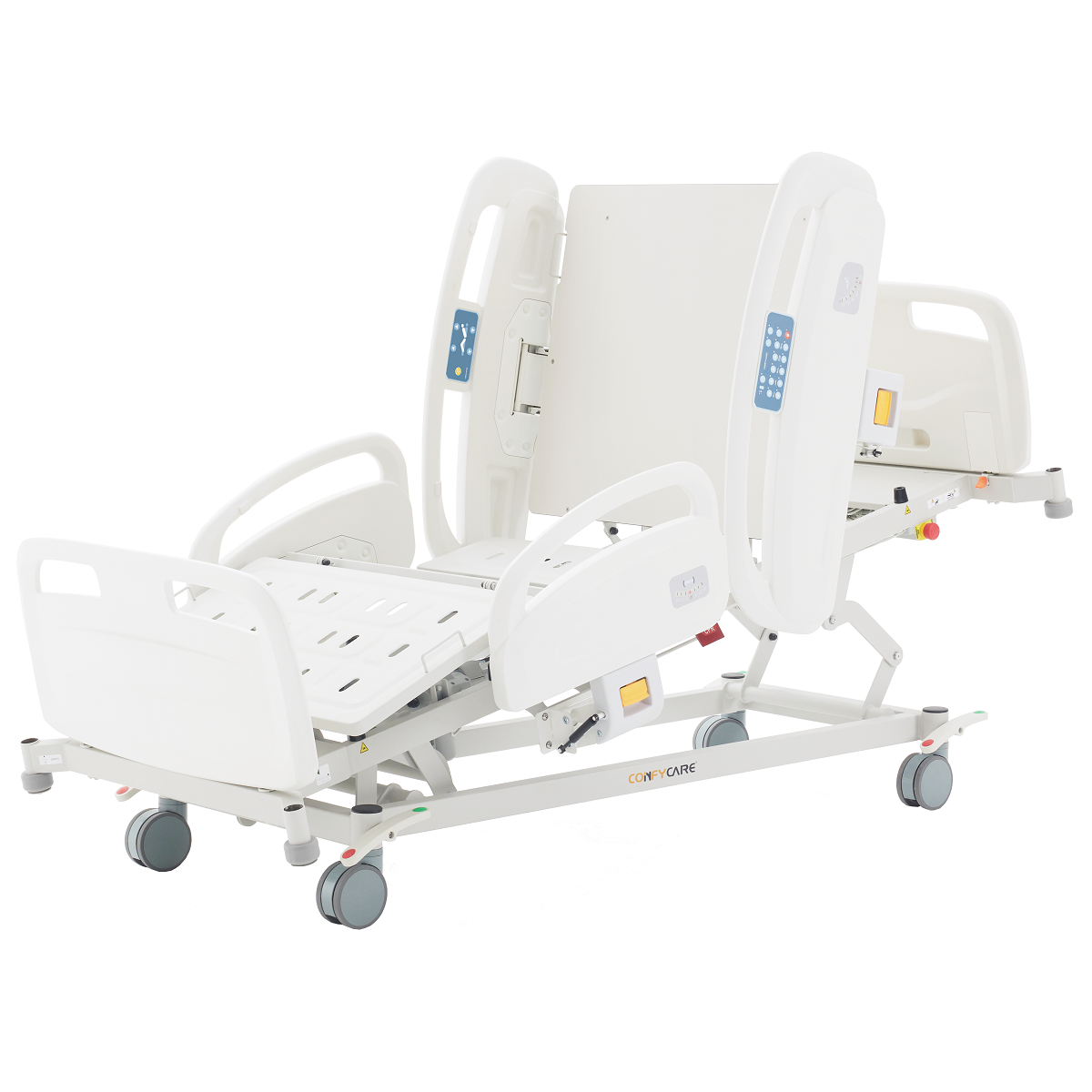

Backrest angle: 0-70 degrees
One touch backrest positions: 30 degrees then continuous to 70 degrees
Knee break angle: 0-27 degrees
Leg angle: 0-12 degrees

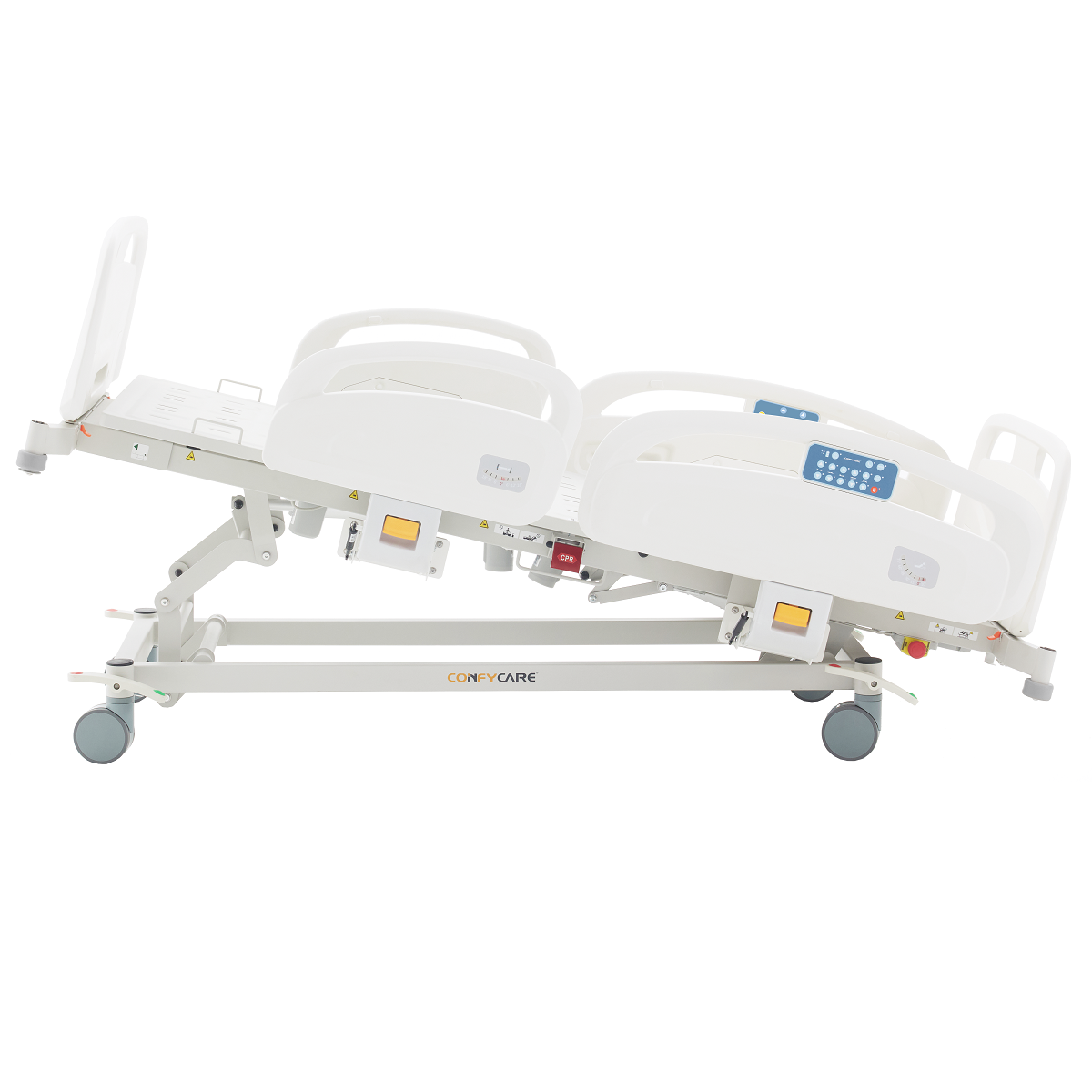

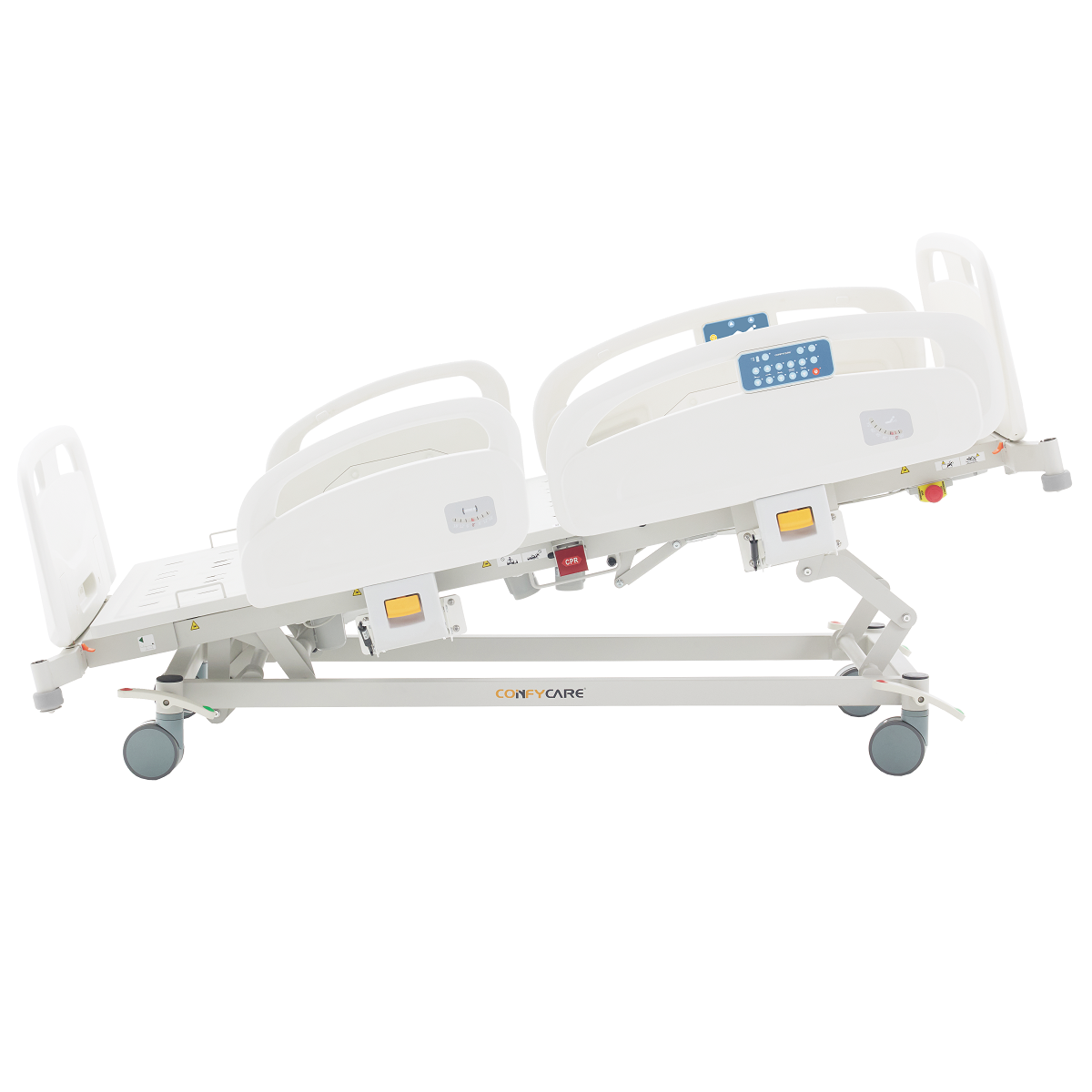

Trendelenburg & reverse trendelenburg: 0-13 degrees
SWL: 300KG
Warranty: 3 Years
Certification: CE, FDA, ISO13485-2016
ORDER CODES:
HBES407EX
MAINTENANCE: Please make sure your bed is serviced yearly to ensure your bed functions to its optimum. Lubrication of pivot points and moving points on your bed must be done on a regular basis.
